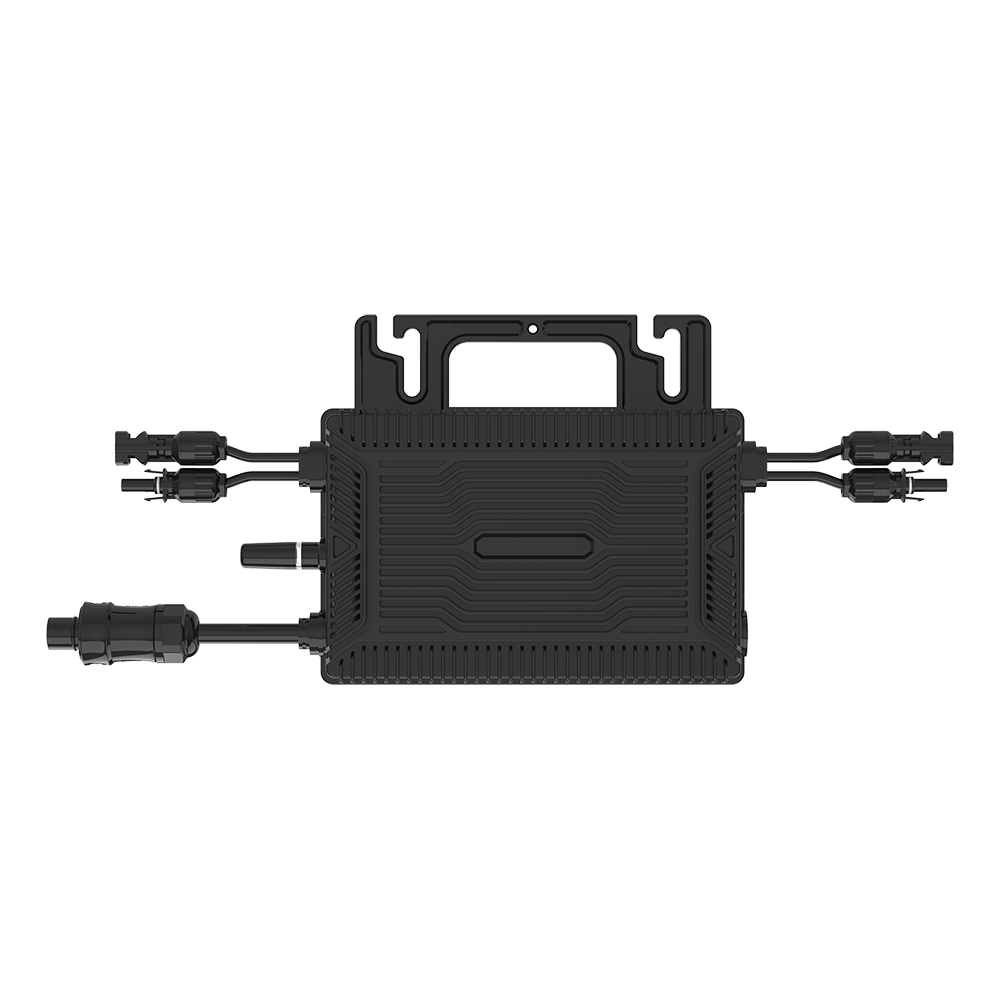

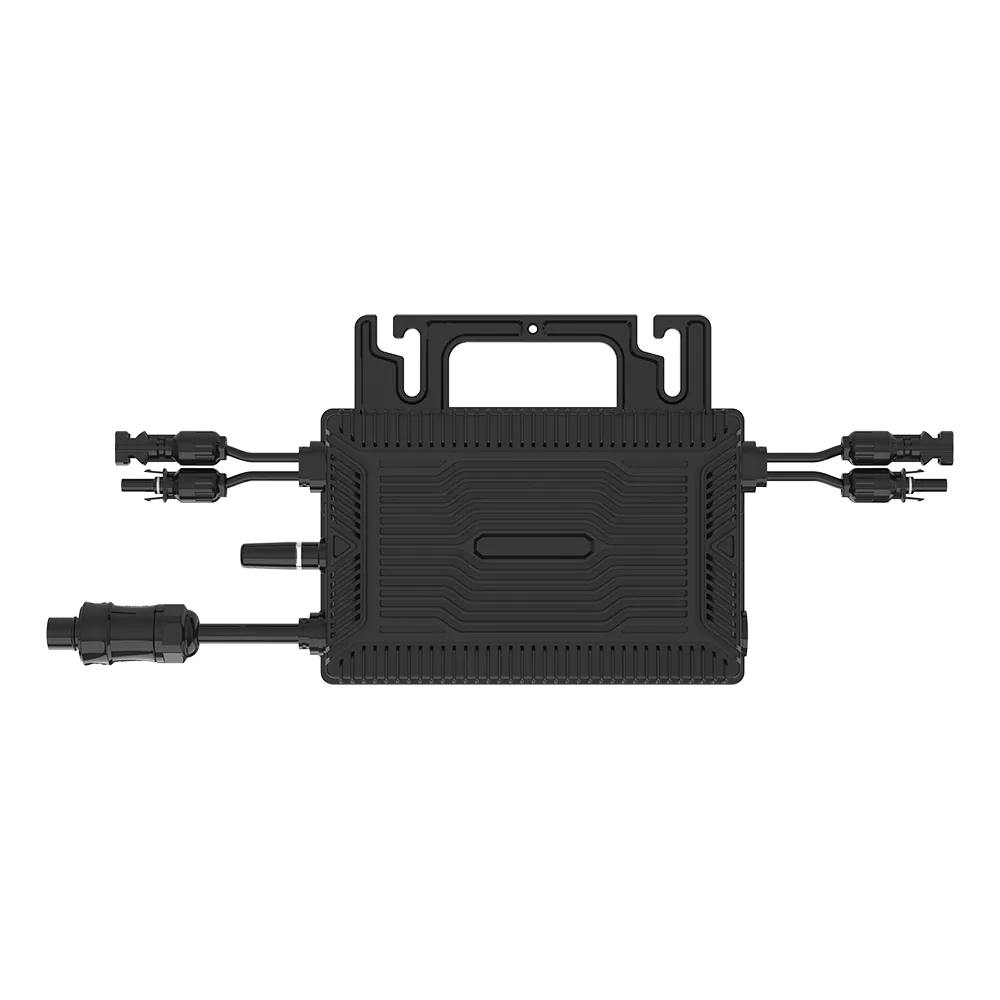

High-voltage grid-tied microinverter
Lower input current for high-voltage PV modules
The APHV series is designed for high-voltage, low-current PV architectures using crystalline silicon, perovskite and other thin-film modules. Two independent PV inputs, 80–230 V operation and intelligent anti-backflow control create a compact 700–1,000 W grid-tied platform.
Output
700 W
PV Input
2 × 435 W
MPPT / Input Range
80–230 V
Max Input Current
2 × 9 A
Input Short-circuit Current
2 × 11 A
Platform Capabilities
Technical Data
| Rated Output Range | 700–1,000 W |
|---|---|
| Working Voltage Range | 80–230 V DC |
| Starting Voltage | >80 V DC |
| Nominal Output Voltage | 230 V AC |
| Peak Microinverter Efficiency | 98.3% |
| CEC Weighted Efficiency | 97.6% |
| Nominal MPPT Efficiency | 99.8% |
| Total Harmonic Distortion | ≤3% |
| Power Factor | >0.99 default; 0.85 leading to 0.85 lagging |
| Maximum Units per Branch | 10 at 230 V |
| Operating Temperature | -40 to +60 °C |
| Dimensions | 230 × 200 × 42 mm |
| Weight | 3.25 kg |
| Enclosure Rating | IP67 |
| Communication | Built-in Wi-Fi & Bluetooth |
| Monitoring | Smart Life |
Specifications are based on the supplied product literature. Confirm the final datasheet, grid standard and order configuration with sales before procurement.
Application Fit
Procurement routes
Move from technical data to a sample, OEM or project decision with the right compatibility checks and open-item list.
OEM & Distribution
Start with the target market, PV module and sales configuration. TMG can then narrow the platform, define a sample BOM and identify the documents that still need market-specific confirmation before branding or volume production.
Open solution page →Module Manufacturer Support
APHV provides two independent high-voltage PV inputs for modules whose voltage and current architecture differs from conventional low-voltage crystalline products. Compatibility must still be proven from the exact module datasheet and operating extremes.
Open solution page →EPC Export Management
TMG APLV and APHV platforms support LAN high-speed anti-backflow control in compatible configurations. The project result depends on correct PCC measurement, controller compatibility, network design, response behavior and utility acceptance.
